Introduction
  • Technology means simplification process & operations.
  • Swimming construction has it own implications & to construct the swimming pool.
  • Needs a lot of consultant/agencies even container pool builder has many agencies.
  • Their job is to just get them together & fix the water filter, under water lights, pool pumps and pool ladders.
  • There is no technology or innovation involved in civil swimming pools.
  • Sand filter are still used as that is not at all scientific & used 100 year ago.
  • Only sand filter is involved in casing of filter from steel to fiber & five value to one value.
  • We at Arrdevpools focus to make pools simple & easy to make & use.
  • That has come with 25 year of continuous R&D making pools better every year as R&D is a never-ending process.
  • Prefabricated pools are as name suggested are fabricated in factory & assembled at sites or homes.
  • Prefabricated pool can be in any shape & size.
  • These can be in ground or above ground indoor & outdoor installation.
  • These can be of any size & depth as need the modern fully automatic liner fixing machine.


This is Very Simple Method of Making Swimming Pools.

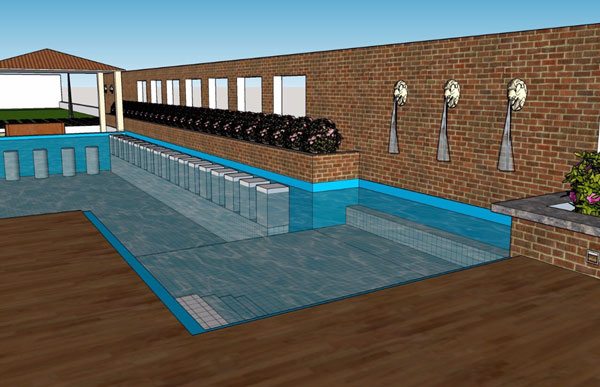

3D drawing provided by architects or clients or we make them these drawing as per requirements. KIDS POOL planter, plunge pool area or pool steps are incorporate in designer swimming pools.


Leaning and competition pools are have aquatic world standards (formally known as fina) the size of pool, facility neat the pools. Filtration system. Diving and water polo facilities etc. Are designed and accordingly the products are manufactured.


The production start at factory as per size and shape of swimming pools.



Wall Panels

Swimming pool structure is made of wall panels. There are three type of materials by which we make wall panels.



Fiber Glass Made Panels

These panels are easy in making & can be in various sizes in height like


  • 2.25 feet for kids pool. 3.5 feet for sallow pools. 4 feet for specific depth of swimming pools.
  • 4.5 feet is the normal and standard height of swimming pool in most case.
  • 5 feet and 6 feet pools are made to demand for deep and competition swimming pools.
  • We first make the floor of swimming pool which is generally made by client or any local contractor.
  • Floor can be made in PCC or RCE as per soil condition. The roof top pools are made on existing RCC roof if made as per load of water.
  • The other option of roof top pool is to strength the roof or prefabricated steel platform & RCC on that plane.

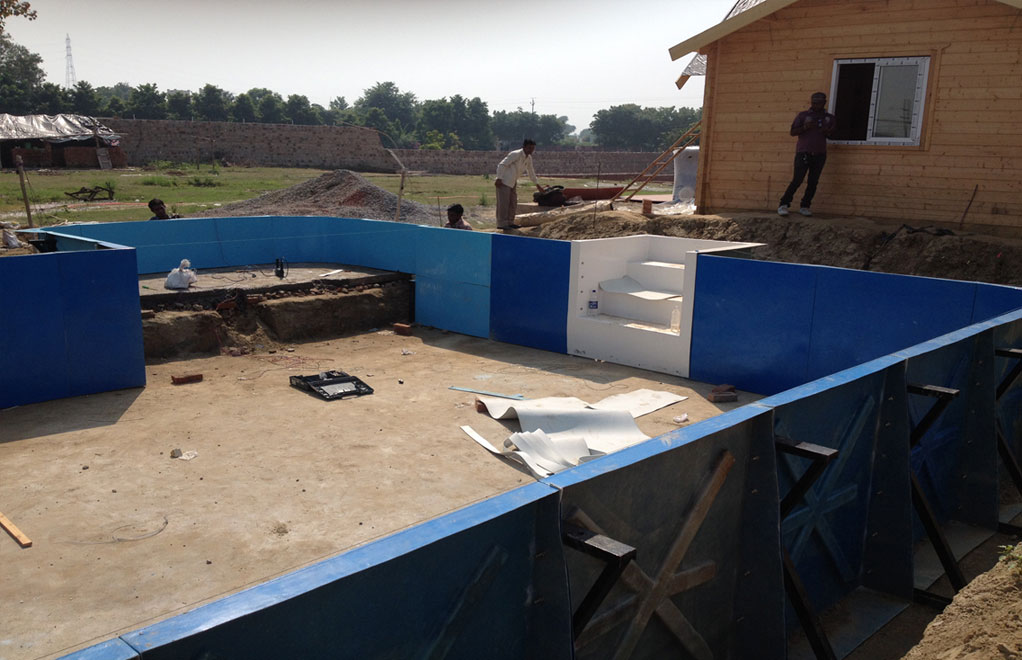

  • The 2ft which extra PCC/RCC is laid from the size of pool decided after this the panels are erected all around the pool wall as per shape & size of pool.
  • The steel bracket is installed all around.
  • Once the drain & inlet kit on fixed.

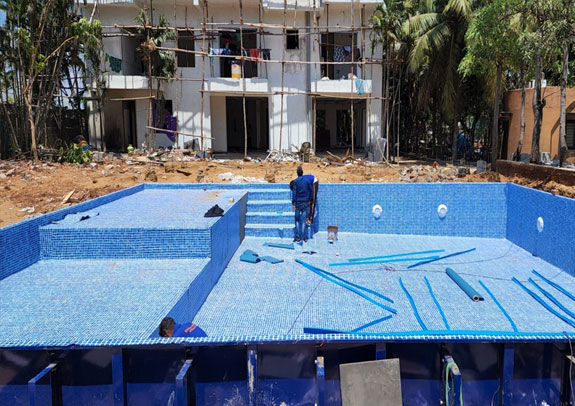

  • The liner is fixed inside of pools wall & floor. The 1.5MM thick liner is used for the coating.
  • It has 4 different layer & many internal designs of liner. We usually use antiskid pool liner which popular design of glass mosaic design or pebble design to make pool natural.( As plain blue color of pool looks plastic & not natural).
  • Once this is done all fix lives like lights on wall/ ladder inside pool & pipe less water filter system is placed at appropriate place.
  • After this pool is tested with water and hand over to client. The Deck & planters or landscape is placed accessories to designs.

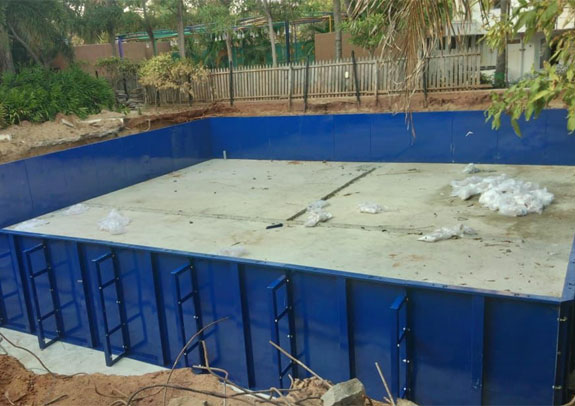

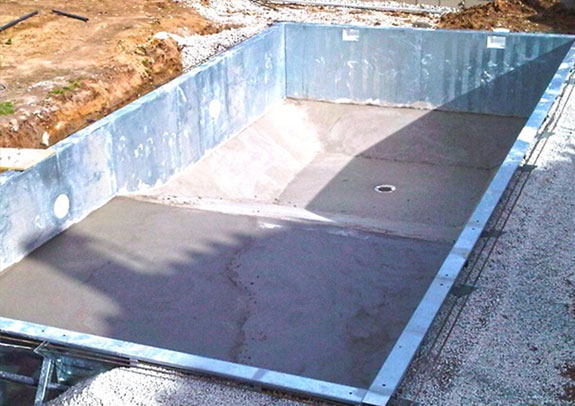

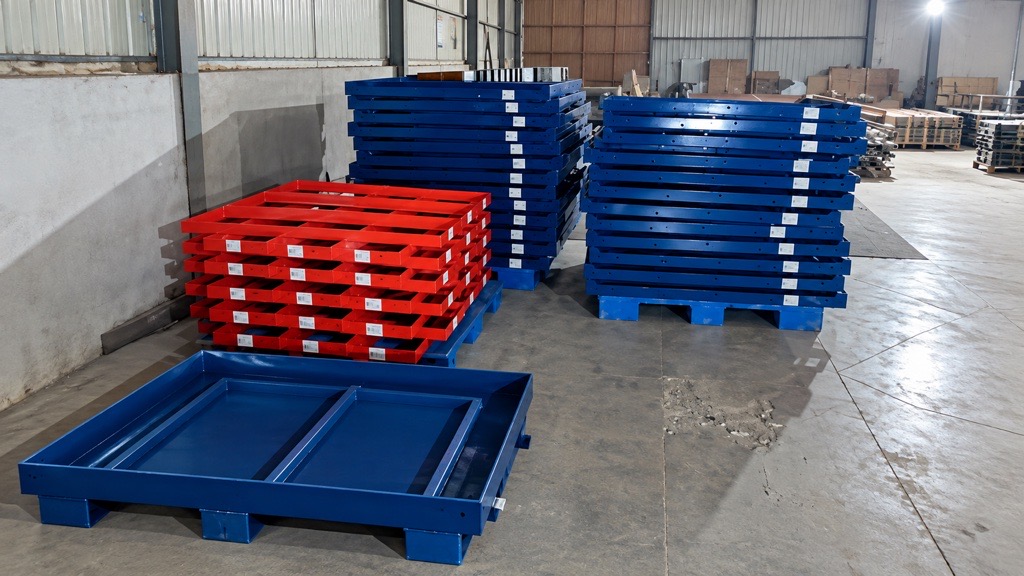

Steel Panel for Wall

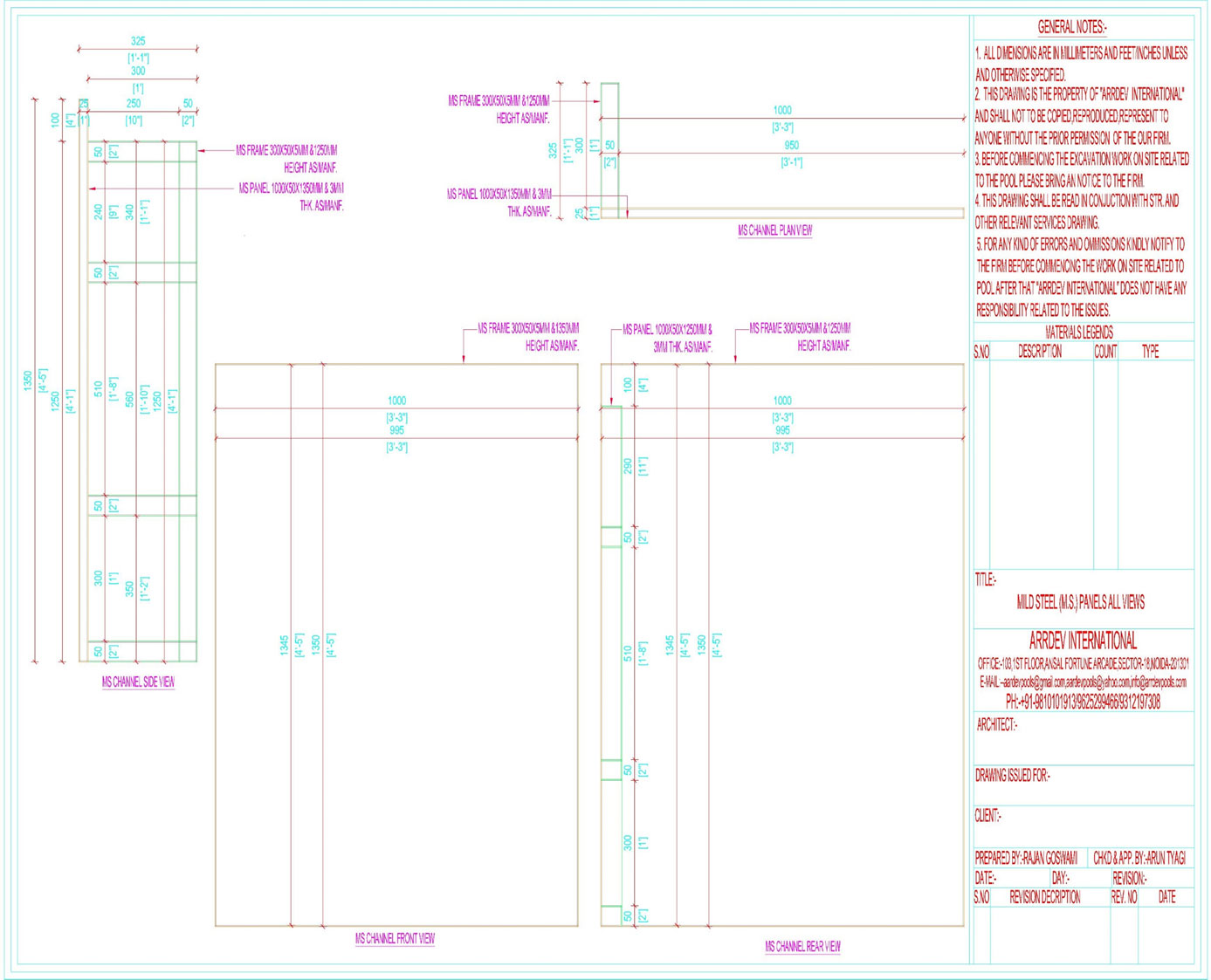

MS Steel Panels icon
  • With Laser cutting and finishing for any shape and size of swimming pool. These are fiber coated for life long protection.Strong and sturdy panels.
  • Size of panels are 1000 mm wide and 1350mm height of each panels.
SS 304 Made Steel Panels icon
  • These are high end wall panels and size 1000mm and 1350mm height of these panels.
  • These wall panels can also be customize as per requirements.

Resort Pool Chennai ECR

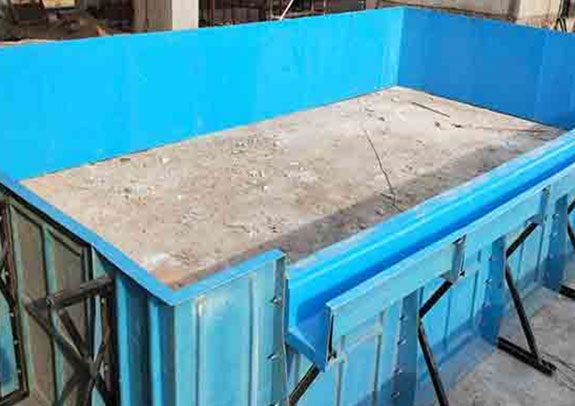

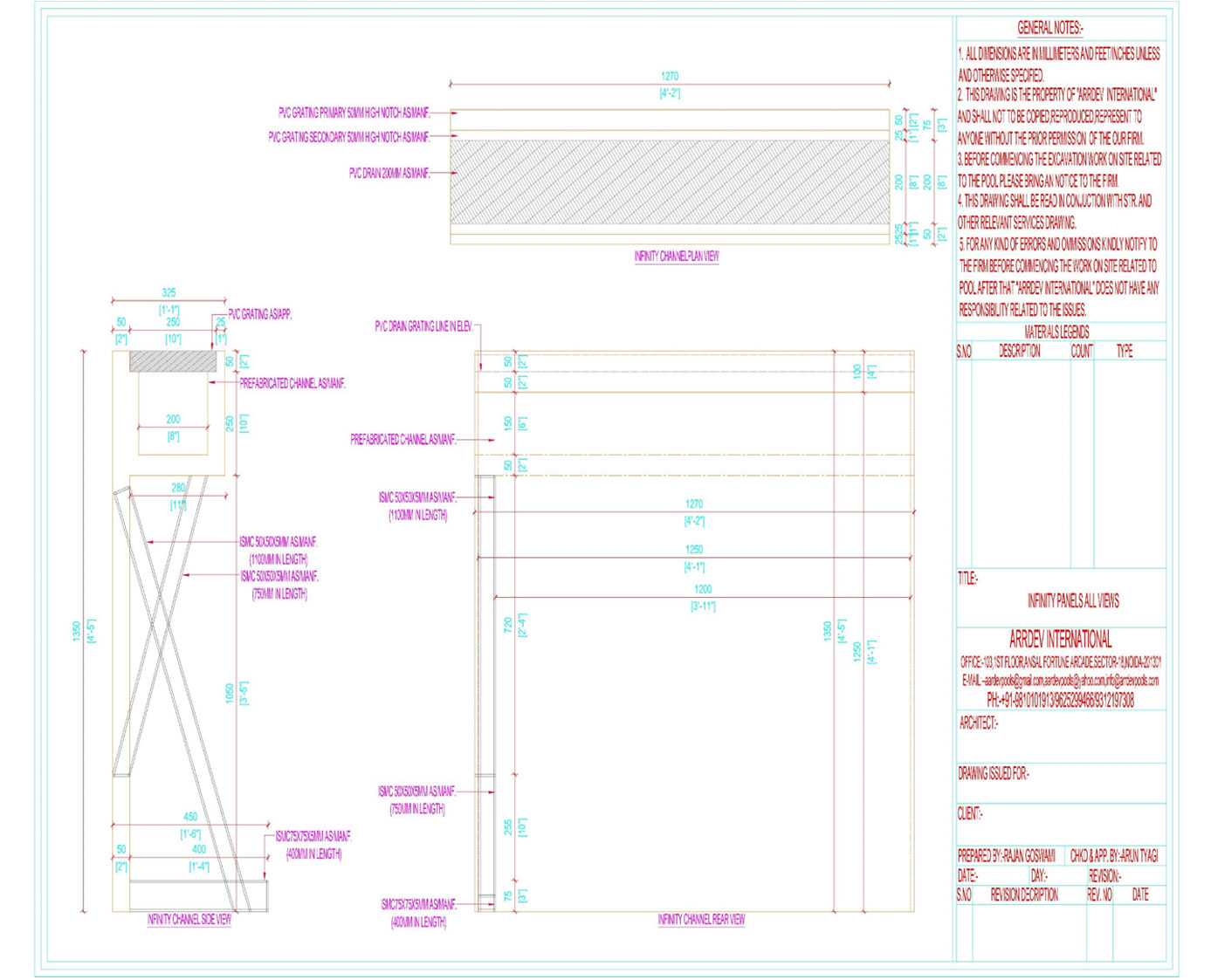

Overflow Swimming Pool Wall Panels

  • Overflow swimming pool is one of the pool we specialize in while making Prefabricated wall panels for swimming pool.
  • Overflow grating 10inch or 250mm wide can be placed in these channels.
  • These channels are connected with balancing tank which is again made in prefab wall panels.
  • The water inlet is through the wall of panels which are made in fiberglass with Steel framing and strengthen ribs.
  • 12 years life time warrantee.

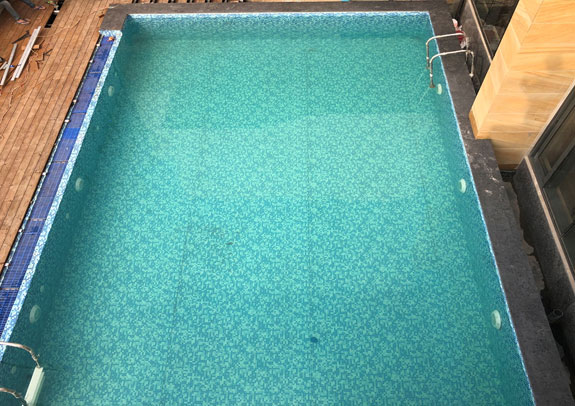

Roof Top Pool Holiday-Inn, Manesar

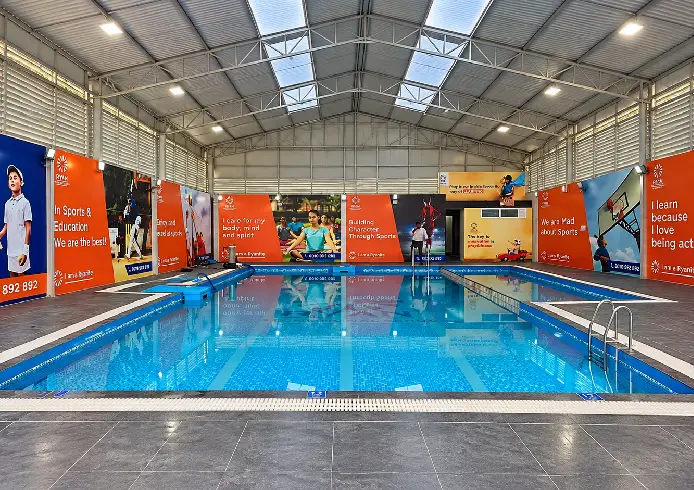

Semi Olympic Swimming Pool School, Haridwar

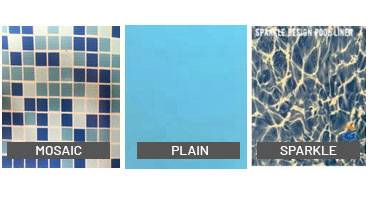

Liner Options



Pool-Linears : Pool Max

  • GLASS MOSAIC , sparkle, PEBBLE, granite,BLUE design pool liner with 1.5 mm thickness and 4 coating of layers,: POOL MAX 1.5(ARRDEVPOOLS) along with adhesive to paste with liner on wall fixed with fixtures on top angle and screw etc. Completed in all respect.
  • Item no. PVC laminated on both sides with 100% high tenacity polyester layer 1.5mm (± 3%), 110cm, 165cm, 195cm, 205cm (maximum 510cm).
  • Technical Specifications: Tensile strength (cut strip, FS5100) warp :350 lbs.
    Fill :250 lbs
    Tear strength (tongue method, FS5134) warp : 85 lbs. Fill : 80 lbs.
    Adhesion(afteradhesion,fs5970):- 22 lbs./2”
    Temperature resistance
    Low temperature (FS5874):-22°F
    High temperature (FS5872) : +158 °F 6.Special treatment
    Ultra-violet pigment, anti-mildew, cold resistance -30 Celsius, cadmium free.
  • 10 years life long warrantee.



Designer Prehab Pannels and Prehab Swimming Pools with Liner and Pipeless Filters

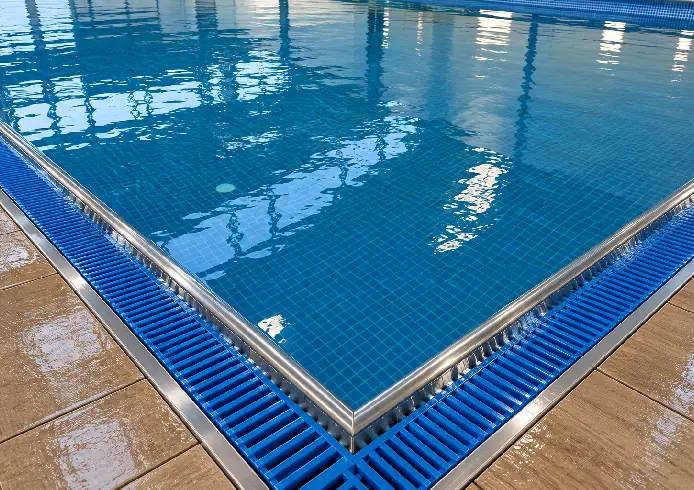

Overflow Type School Pool, Srinagar J&K

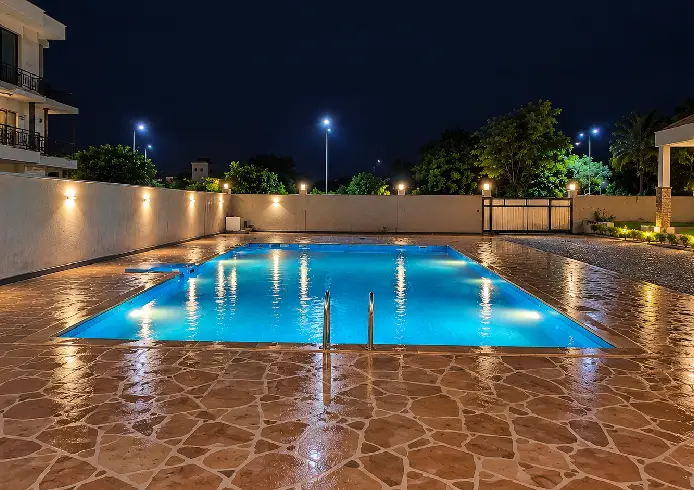

Hotel Pool 20x40x4.5 Feet, Jodhpur

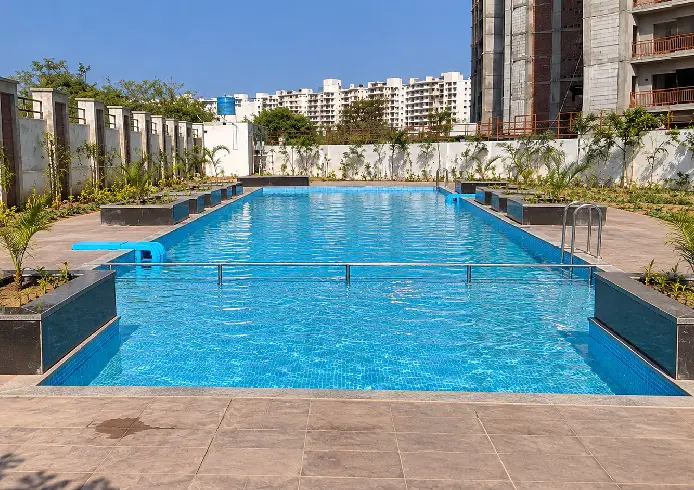

Society Pool Agra Ganpati Group 25x65x4.5 Feet

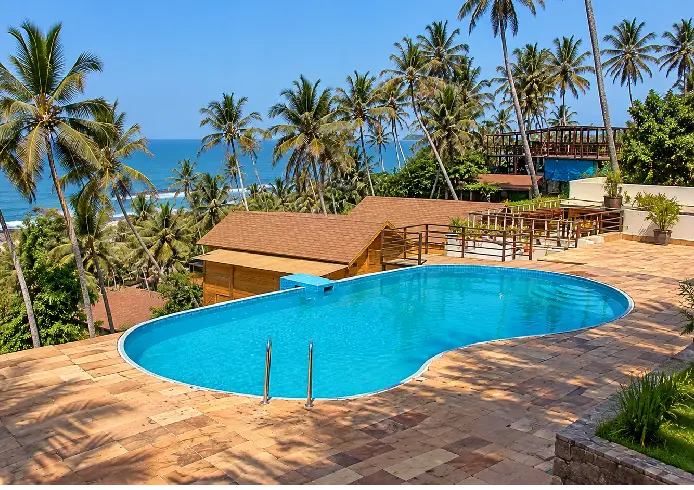

Hotel Swimming Pool Bean Shaped 35x20x4.5 Feer Goa

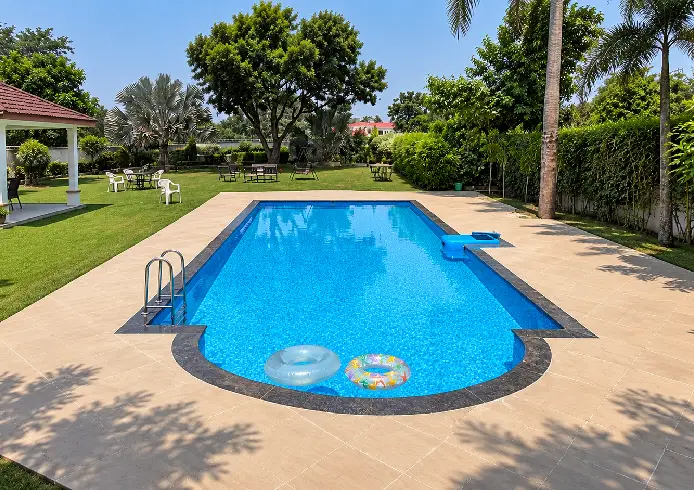

Roman Shaped Pool at Farm House 45x20x4.5 Feet Delhi

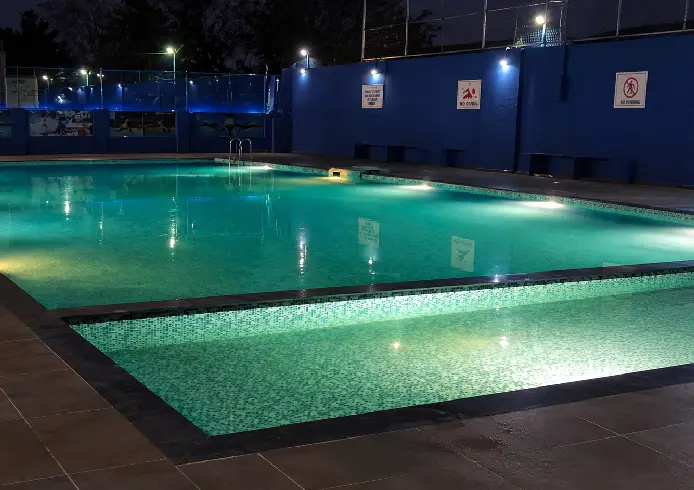

Commercial Academy Pool 60x3.x4.5 Feet Chennai
