Swimming Pool Pipeless Filters Manufacturer and Supplier in India

Everyone who uses a swimming pool is aware of the importance of filters, so we have developed pipeless filters equipped with the newest technological advancements. As a leading manufacturer of pipeless filters, we provide a wide selection of pipeless filters in a variety of sizes and shapes. We provide top-notch pipeless filters for the greatest experience throughout India as well as overseas.Pipeless filters, also known as cartridge filters, are a newer type of pool filtration system that do not require a traditional sand or diatomaceous earth (DE) filter. Instead, they use a pleated cartridge made of a polyester material to filter out debris and contaminants from the pool water.One advantage of pipeless filters is that they are more energy-efficient than traditional filters, as they require less water flow and pressure to operate. This means they can also help reduce your overall pool maintenance costs, as they require less frequent backwashing and cleaning.

Another benefit of pipeless filters is that they are typically easier to maintain and clean than traditional filters. The cartridges can be easily removed and hosed down to remove any debris, and they can be replaced when they become too worn or damaged.

Overall, pipeless filters can be a good choice for smaller pools or for homeowners looking for a low-maintenance, energy-efficient filtration system. However, it is important to carefully consider your pool's specific needs and consult with a professional before making a decision about which type of filter to use.

Pipe Less Filters: Every swimming pool needs water, and we need a water filtration system to keep that water clean. The dust that enters the swimming pool is cleansed by a filter that settles on the floor or dissolves in the water and is invisible to the human eye.

The first step in the process is to use a medium to remove impurities from the water. 1. Sand two cartridges, three DEs, and four filter bags. The second factor is the chemical makeup of the water, which causes dust and other impurities to settle and benefits the pool's biological system. To maintain the water's pH at 7.6, alum and acid are added.

Controlling biological water contaminants comes third. After 3–4 days, water starts to deteriorate. Therefore, in order to keep water clean, disinfectants are required. These typically consist of chlorine or bromine, though ozone or UV disinfectants may also be used. The aforementioned components formed the basis of the entire swimming pool water treatment concept, and we must manage them with various devices and filters.

The cost of chemicals and the amount of electricity used in the processes mentioned above are both considerable. We had to perform back washing in the sand filtration system, which involved throwing swimming pool water and chlorine into the process. New chlorine had to be injected each time we performed the back washing. So we waste both chemical and water. We do not waste water using pipeless filters, which results in very cheap maintenance costs.

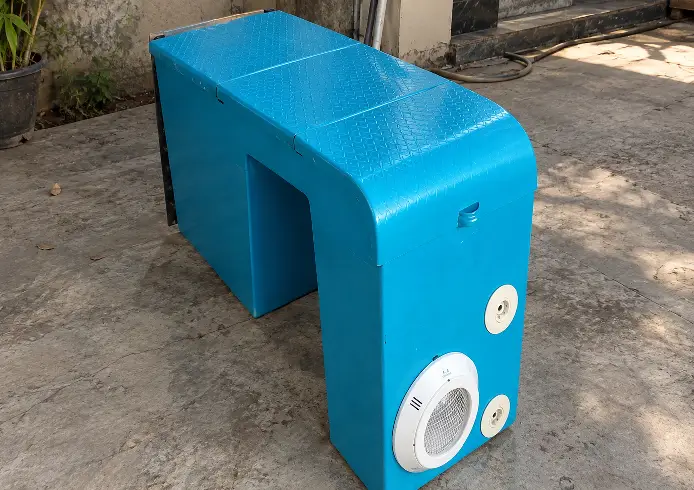

Mini Pipeless Filter

One filter enough for pool size up to 20x20x4 ft (400 sq. ft.)
Model No: AF- MINI-F-50
Patented Design
Pipe less Filter of Capacity 5500liters/hour.
One hp motored pump,
One CF-50 model filters with cartridge.
25-micron filtration with 4.2 sq. meter surface area of filter. Under water light of 100w/12V
Pipeless Filter -6000 L/hr
Circulation Pump-1 HP

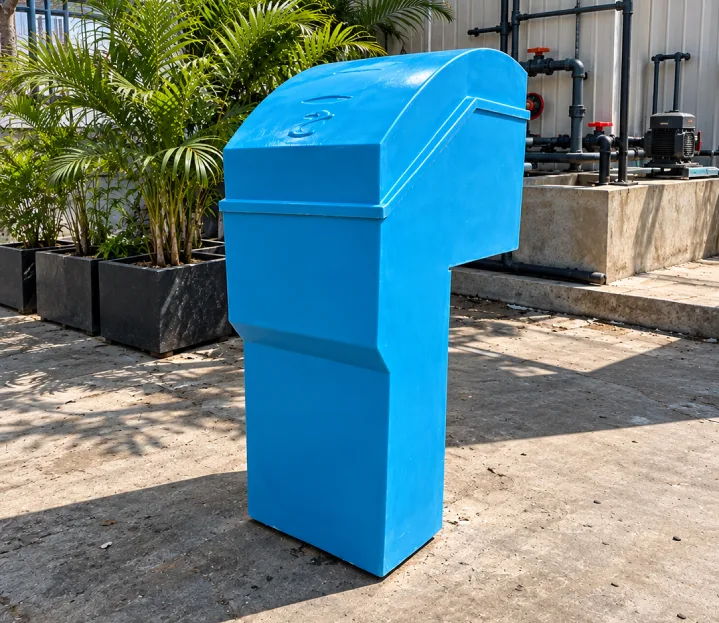

Deck Mounted Pipeless Filter-Commercial

In this model no cutting required at pool deck, the machines like filter and pumps are fixed on the deck of swimming pool. Useful and efficient for water bodies/swimming pool with depth more than 600mm and where wall is thick and no cutting is possible.

Deck Mounted Pipe less FilterAF-13.5 DECK-F-50.
Swimming pool of surface up to 600 sq. ft. (30ft x20ft x4ft) bigger pool the multiple unit is required.
Filtration Capacity 10000liters/hour.Pump flow rate : 25000/hr.
Filter-12.4 sq. feet
Patented Design (fibre glass is not affected by chlorine, heat and cold)

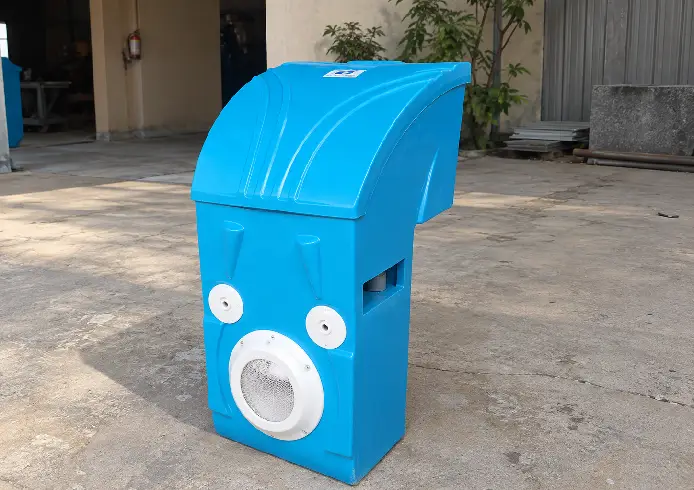

Deck Mounted Filter-Domestic

Make: Arrdevpools (patented design)
One inbuilt skimmer and two filter water outlet nozzles on both sides.
One under water light 100w/12v with electronic transformer.
One hp motored pump.
One CF-50 model filters with cartridge.
Water proof electrical control box.
Skimmer is at right/left side with nozzles at front side.25-micron filtration with 4.2 sq. meter surface area of filter.
Three stage: skimmer/strainer/cartridge Filtration.
Colors: White/blue or as per requirement.
Pool Size - 20x25x4ft (500 sq. ft)
Pipeless Filter -6000 L/hr
Circulation Pump-1 HP
Filter -4.2 sq. ft

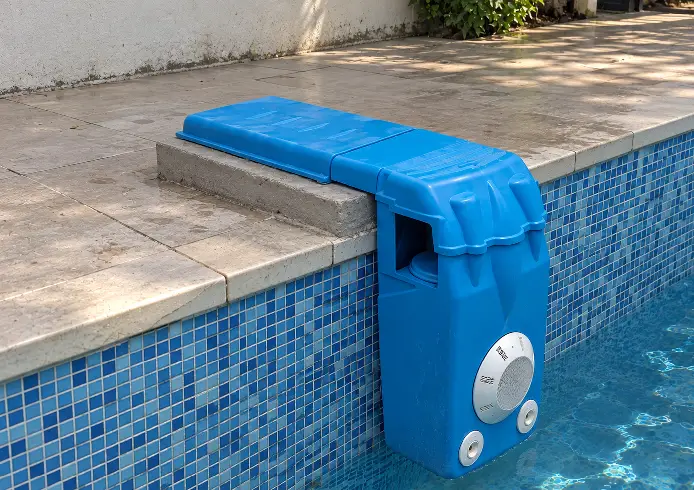

Retrofit Pipeless Filter

In this kind of filter, no cutting required at pool wall, the machines like filter and pumps are fixed on the deck of swimming pool.

Retrofit Pipe less Filter Model: AF-15Retro-F-100.
One unit for swimming pool surface up to 800 sq. ft. (40ft x20ft x4 ft).
For bigger pool the multiple units are required.
Pump flow rate: 45000 litre/hr.
Pipe less Filter of Capacity: 15000 litres/hr. (residential pools) One under water light 100w/12v with electronic transformer LED.
One 1.5 hp motored pump.
Two CF-50 model filters with cartridge.
Water proof electrical control box.
Skimmer is at side with nozzles at front side.
25-micron filter with 9.4 sq. meter surface area of filter. Three stages a) skimmer/strainer/cartridge Filtration.
Colours: White/blue or as per requirement (Customized). *Fiberglass is unaffected from chlorine, heat & acids.

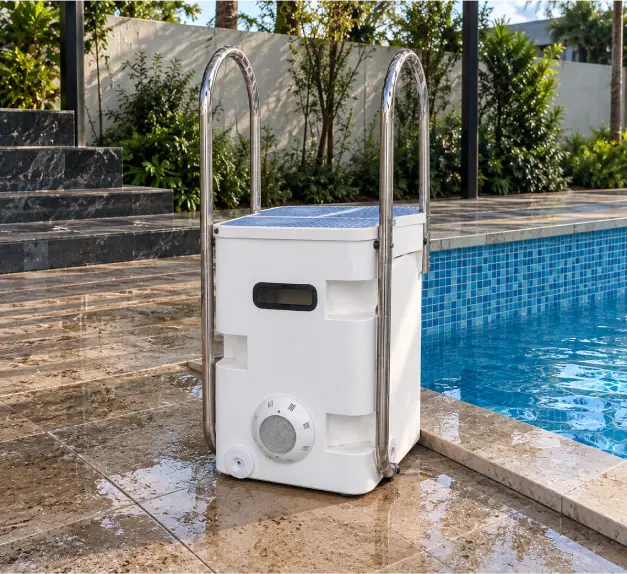

Multi-Functional Combo Pipeless Filter

This filter is multifunctional Pipeless filter have inbuilt ladder, lights and complete electromechanical system.

Multi-Functional Pipe less Filter (Combo Model) Model: AF-18UniF-75
Swimming pool surface up to 700 sq. ft. (35ft x20ft x4 ft) for bigger pool the multiple units are required
Filtration Capacity 9000liters/hour. Pump flow rate: 30000 litre/hr.

Make & Features

One inbuilt ladder three steps.
One under light 100w/12v with electronic transformer.
One 1hp motored pump.
One CF-75 model filters with cartridge, air safety valve and pressure gauge with 0-2kg/cm2 working pressure.
Skimmer is right side with nozzles in front and left side.
Three stage: a) skimmer/strainer/cartridge Filtration.
Colours: White/blue or as per requirement (Custom made). Fibre glass is unaffected from chlorine, heat & acids. Side nozzle for aeration and fountain. (Optional)

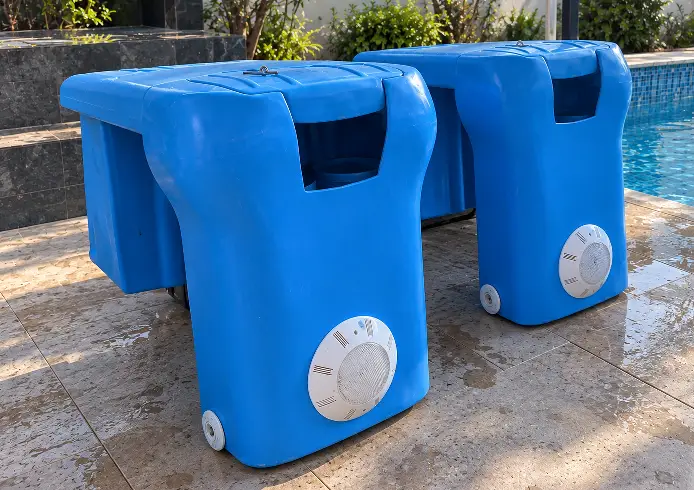

Commercial Pipeless Filter

It has largest surface area of 14 sq. meters. The flow rate is 2000 litres/sqm/hr. pe the best filtration available all over world. This filter is the best suitable solution where high number of people are using pool or too dusty conditions.

Wall hung Filtration Unit Commercial Model: AF-24UniF-150.
One unit is for swimming pool surface up to 900 sq. ft. (45ft x20ft x4 ft) for big pools needed multiple
Pipeless Filter of Capacity20000 litres/hour (Residential pools),
Pump flow rate: 60000 litre/hr
Arrdevpools make (This is compact system using the cartridge filter. These are fixed after completion of civil work in swimming pools.)
One under light 100w/12v with electronic transformer.
One 2.0 hp motored pump two of 75 model filters with cartridge.
Water proof electrical control box.
Skimmer is at front side with nozzles at right and left side. 25-micron filtration with 14 sq. meter surface area of filter. cartridge Filtration
Colours: White/blue or as per requirement (Custom made) Fibre glass is unaffected from chlorine, heat & acids. Side nozzle for aeration and fountain (Optional)

All In One

FAQ

Frequently asked questions

What is a pipeless filter?

A pipeless filter is a self-contained, compact swimming pool filtration unit that attaches directly to the pool wall, eliminating the need for a separate pump room, extensive plumbing, or underground pipes. These systems typically use cartridge or bag filters to clean the water.

How does a pipeless filter work?

A pump within the unit draws water from the pool, pushing it through a filter cartridge or bag to remove debris and contaminants. The filtered water is then returned to the pool through jets on the unit. This entire process occurs within the single, self-contained system.

What are the benefits of a pipeless filter?

Cost and Space Savings: The primary benefit is the elimination of costs and space associated with a dedicated pump room, extensive plumbing, and excavation. This makes them ideal for smaller pools or those with limited space.
Easy Installation: Since there's no complex piping, installation is straightforward and much quicker than a traditional system. Many models can be retrofitted to existing pools.
Energy Efficiency: These systems often require less water flow and pressure to operate, leading to lower energy consumption and reduced operational costs.
Reduced Risk of Leaks: With no buried pipes, the risk of underground leaks is completely eliminated.
Integrated Features: Many modern pipeless filters come with additional built-in features like lighting, chemical feeders, and even counter-current swim jets.

What are the drawbacks of a pipeless filter?

Limited Circulation: A single, wall-mounted unit may not provide the same level of comprehensive water circulation as a traditional system with multiple inlets and outlets. This can lead to "dead spots" in larger or irregularly shaped pools where water isn't filtered as effectively.
Aesthetics and Noise: The unit is visible on the side of the pool, which some owners may find less aesthetically pleasing. The pump and motor are also located near the pool, which can create noticeable noise.
Maintenance: While maintenance is simple, it often involves a physical process of removing and cleaning the filter cartridge or bag. This can be messier and more labor-intensive than the backwashing process of a sand filter.
Durability and Lifespan: While durable, some components, like pump seals, can wear out. Since the entire unit is one compact system, a failure in one part may necessitate replacing the whole unit or a costly repair.
Suitability: They are most suitable for small to medium-sized residential pools. For larger or commercial pools, a traditional filtration system with a separate pump room is often recommended for better circulation and higher capacity.

How is a pipeless filter installed?

Installation is a simple process. The unit is mounted directly onto the pool wall, either during new construction or as a retrofit. It typically requires an electrical connection to power the pump and other features.

How do you maintain a pipeless filter?

Maintenance primarily involves regularly cleaning the filter cartridge or bag. This is usually done by removing it from the unit and hosing it off to remove trapped debris. The frequency of cleaning depends on the pool's usage and cleanliness. Additionally, the pump and other internal components should be inspected periodically for wear and tear.

Can a pipeless filter be used for a large pool?

While some commercial models are available, they are generally best suited for smaller residential pools. For larger pools, multiple units may be required to achieve adequate filtration and circulation, which may negate some of the cost and space-saving benefits. A traditional sand filter system is often more effective for larger volumes of water.

Are pipeless filters energy efficient?

Yes, they are generally considered more energy-efficient than traditional systems. Since they operate without the friction caused by long runs of underground piping, the pump requires less energy to circulate the water.

What is the typical lifespan of a pipeless filter?

The lifespan can vary depending on the brand, model, and how well it is maintained. However, a well-maintained pipeless filter system can last for several years, with the filter cartridge or bag needing replacement as it wears out. The lifespan of the entire unit is often cited as being around 6-7 years.

Do pipeless filters use a sand filter media?

No, pipeless filters typically use cartridge or bag filters, not sand or diatomaceous earth (DE). The filter media is a pleated polyester cartridge or a fine bag that physically traps debris.

Can a pipeless filter be installed on an existing pool?

Yes, many models are designed for retrofit installation and can be mounted on the side of an existing pool without the need for major civil work or breaking concrete to lay pipes.

How do I choose the right size pipeless filter?

The size of the filter you need is determined by the volume of your pool. Manufacturers provide a recommended flow rate and capacity for each model. It's crucial to select a filter that can effectively circulate and filter the entire volume of your pool's water within a reasonable timeframe.

What are the common materials used for pipeless filters?

Pipeless filters are often constructed from durable, corrosion-resistant materials like fiberglass, acrylic, or reinforced plastic to withstand constant exposure to pool chemicals and water.

Do pipeless filters need a pump?

Yes, they have a built-in pump that draws water into the unit for filtration and then pushes it back out into the pool. The pump is a core component of the system.

Are pipeless filters noisy?

Since the pump and motor are located in the unit right next to the pool, they can generate some noise. However, many modern models are designed to operate at a relatively low decibel level, with noise often cited as being around 50 dB.

How does a pipeless filter compare to a sand filter?

Sand filters offer superior filtration for larger pools and are less expensive upfront. They are also easy to clean through a backwashing process. However, sand filters require a dedicated pump room and extensive plumbing. Pipeless filters are more expensive upfront but save money on installation and civil work. They are also more energy-efficient and better suited for smaller pools.

Can a pipeless filter be used with a saltwater pool?

Yes, most pipeless filters are designed with materials resistant to salt and chlorine and can be used with saltwater pools. Always confirm with the manufacturer to ensure the specific model is compatible.

What is an "all-in-one" pipeless filter?

An all-in-one or "integrated" pipeless filter is a system that combines filtration with other pool functions, such as lighting, chemical disinfection, and counter-current swimming jets, all in a single unit.

Do pipeless filters come with a warranty?

Yes, like most pool equipment, pipeless filters come with a manufacturer's warranty. The duration and coverage can vary, so it's important to check the terms before purchasing.

What is the typical cost of a pipeless filter?

The cost can vary widely based on the model, brand, and included features. While they may have a higher initial purchase price compared to a traditional filter, the overall cost of installation and maintenance can be lower due to the elimination of plumbing and pump room expenses.
